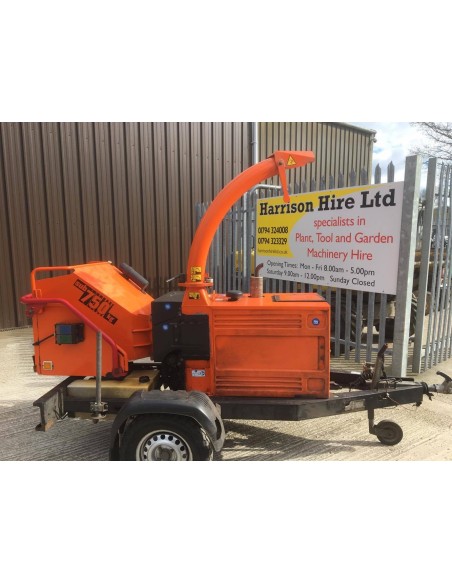

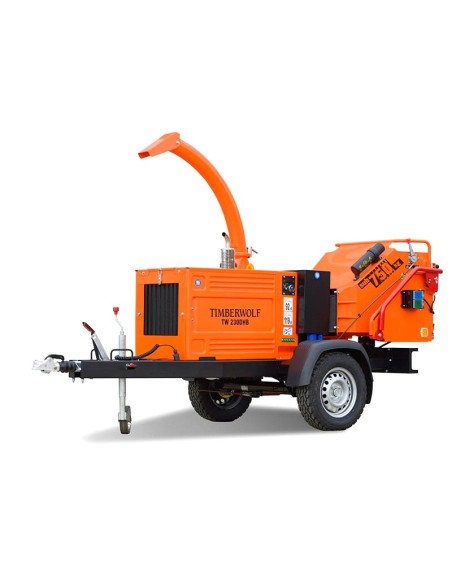

Wood Chipper 6" Capacity - Timberwolf TW 230

Wood Chipper 6" Capacity - Timberwolf TW 230

THE LEADER OF THE PACK

DIESEL ENGINE, HYDRAULIC FEED, BRAKED ROAD CHASSIS

Today’s professional arborist is under pressure to get the work done as quickly as possible with minimal fuss, so a chipper with an exceptional work-rate, being strong and powerful enough to take everything thrown at it without complaint is always top of the requirement list. With these demands, uptime is also paramount so quick and easy servicing schedules and clear access to all service items were also part of the design brief. Spec for spec, no other make of chipper can offer you so much performance, serviceability, This is a rock solid, reliable, high performance 6” wood chipper

MACHINE SPECIFICATION

• Engine - Kubota V1505 SAEJ1352 4 cyl water cooled diesel engine
• Fuel - Diesel
• Max dia. infeed - 160mm (6.3”)
• Feed Method - Twin hydraulic rollers c/w Auto Feed Control
• Blades - 135mm x 100mm Double sided blades fully hardened
• Throughput - Up to 16.9m3 or 5.45 tonnes per hour (based on chips @ 324.5kg per m3)
• Drive - Direct 3 belts
• Ave. Chip Size - 18mm
• Weight - 749kg inc.full tank of fuel and other fluids
• Discharge - Rotates through 270 degrees





FEATURES AND BENEFITS

• Ergonomic ‘open top’  funnel
• Large chipper throat
• Wide rollers
• Exceptional crushing power
• Extra heavy duty rotor
• Fast feed speed
• Large chipping chamber
• Phenomenal chip and leaf ejection
• Consistent and useable wood chip
• Large greasable bearings
• Easy access rotor
• Double sided, thick cutter blades
• Twin feed control positions
• LED light board
• Auto latch cast tow head
• Central service point
• Central greasing system
